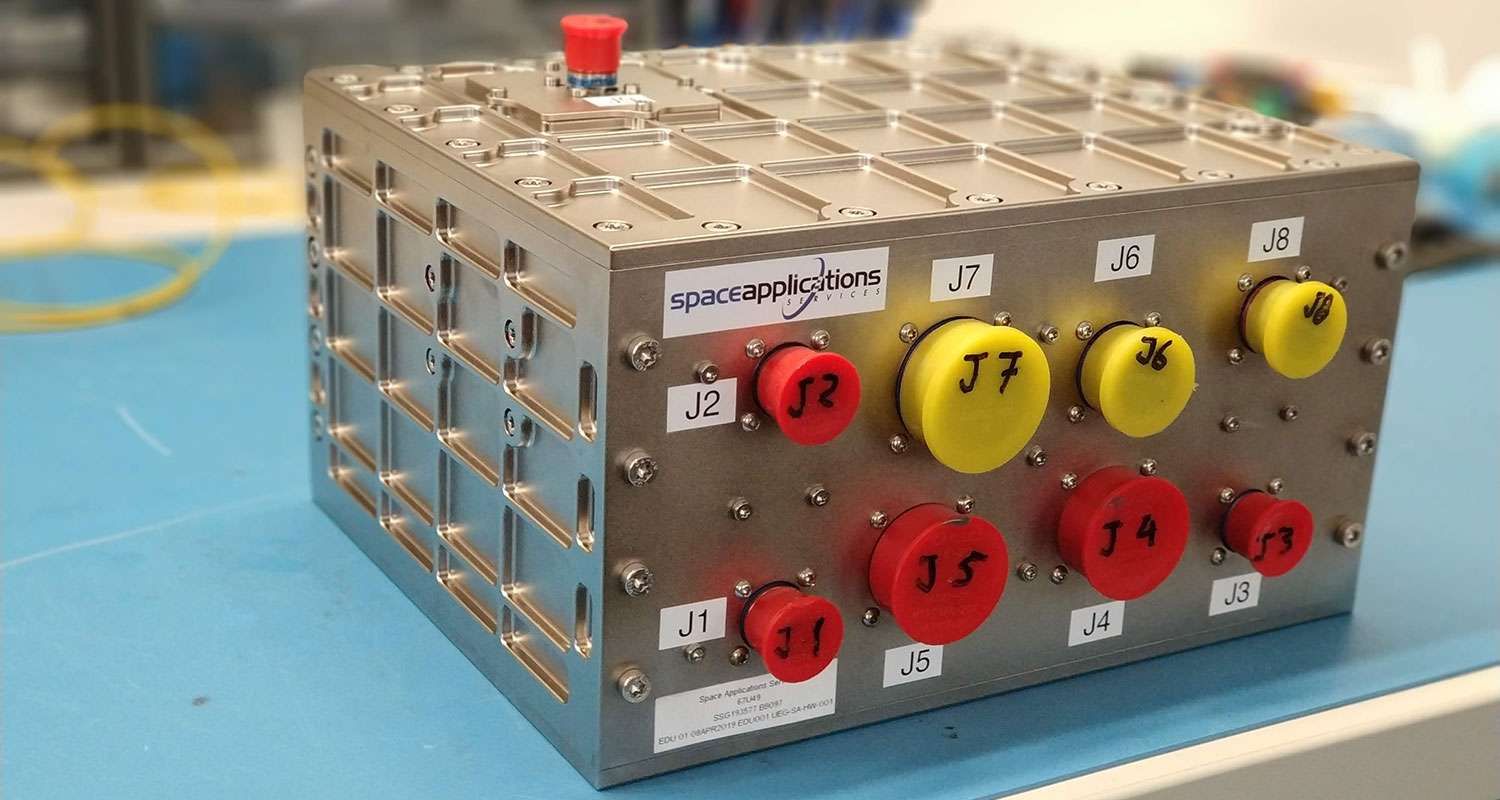

The REG is a small to medium form factor rugged Gigabit Ethernet (GbE) switch system optimized for demanding size, weight and power (SWaP) constraints of embedded space computer network systems applications.
-
Overview
To enhance reliably and availability, the unit can feature a dual-lane architecture for single failure tolerance with a fully customized mechanical packaging and a fully customized redundancy handling module. The unit can interface Ethernet via RJ45 type connectors or high performance circular connectors. Integrated filtering is designed to meet power input voltage, spikes, surges, transients and EMI/EMC requirements of typical space deployments.
The REG enables reliable Local Area Network (LAN) switching across extended operating temperature ranges (-23°C to +63°C), shock/vibration and radiation conditions. The REG features 20 triple-speed (10/100/1000 Mbps) ports and combines layer-2 managed network switch functions with remote management capabilities for optimizing communications, prioritizing critical information and layer 3 routing.
Applications
The REG is an elegant solution for connecting a large number of IP-enabled (embedded) devices, including cameras, sensors, payload, command-and-control equipment and other avionics deployed in space transportation system platforms and orbital infrastructures at the network edge.
- Space: Space transportation systems, orbital infrastructures, portable ground stations.
- Aerospace: Military and civil aircraft.
- Defence: Battlefield communication, rugged networks, combat vehicles.
- Others: Mining, transportation, oil & gas industries
-
More information on the Product Sheet
-
Product Family
Products Redundancy Radiation Mass Dimensions (mm) Power REG-20-RT-R Cold Redundant Radiation Tolerant 5,2kg 268x180x147 15W REG-20-RT-S Not Redundant Radiation Tolerant 2,5kg 190x160x65 15W REG-20-RH-S Not Redundant Radiation Tolerant 3,4kg 277x208x100 24W
