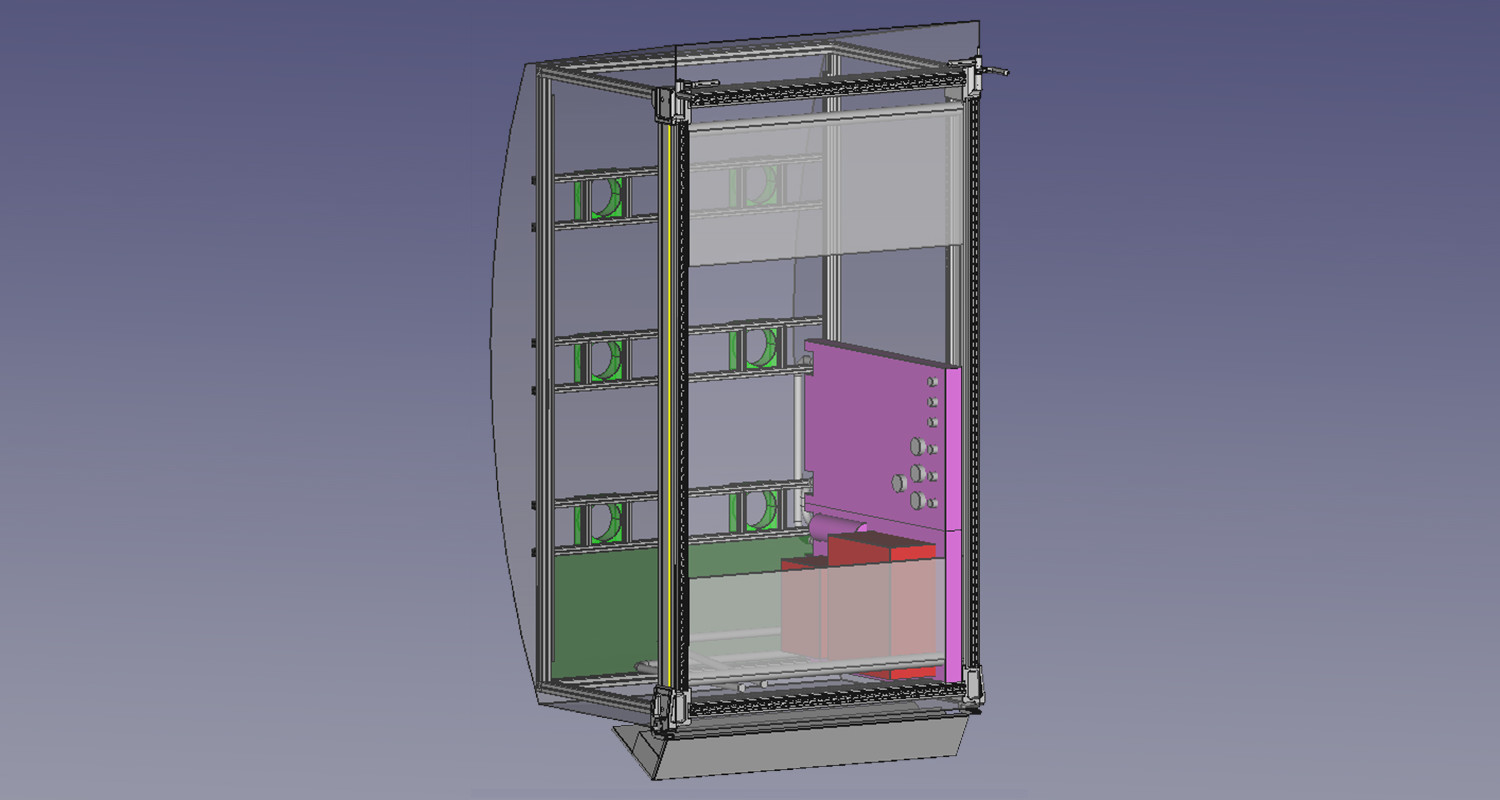

CAMP is a novel lightweight rack concept, designed for the International Space Station.
-
Instead of launching the rack preassembled, it is launched in soft-stowed bags, and assembled on-board. The overall launch mass and volume are hereby significantly reduced, which results in significant saving in hardware and launch costs. Besides providing a flexible physical accommodation for payloads and stowage, CAMP provides by default data connectivity, power, water cooling loop distribution, a generic payload cold plate, and air cooling. These services are implemented modularly, and CAMP can be reconfigured on-board as needed.
More information on the Product Sheet
Applications
- In-orbit experiment accommodation
- In-orbit stowage
- In-orbit service provision to independent payloads (power, data, cooling, accommodation)
- Re-stowable temporary rack accommodation
Features
- Light weight
- Soft-stowed launch possible
- Flexible payloads accommodation
- IP-based communication
Services Available
- Customization of accommodation, data, power or cooling services provided by CAMP
- On-board evolution of services provided by CAMP
-
Specifications Summary
Launch Needed Module Services Provided Services Mass: < 150 kg Volume: ISPR-sized bay • Power: 120 VDC @ 1.2 kW • Water cooling: 1.5 kW • Data: Gigabit Ethernet Max hosted mass: 350 kg • • Water cooling loops: 3 • Air cooling: 6 fans • Power outlets: 3x 120 VDC 5x 28 VDC 6x 5 VDC • Data outlets: 10x Gigabit Ethernet
